Overview

This project secures the Serverless Notes API using Amazon Cognito, demonstrating how authentication and identity controls are applied to cloud APIs in a production pattern.

All endpoints are protected at the API Gateway layer. Unauthenticated requests are rejected before they reach Lambda or DynamoDB.

What This Shows

Ability to add authentication to an existing serverless API without changing application code
Understanding of the difference between User Pools (authentication) and Identity Pools (authorisation and AWS credential issuance)
Applying least privilege with guest access disabled and authenticated users only
Token based API security using Cognito ID tokens passed via Authorization header
End to end thinking from user directory to API protection to live testing

Cognito User Pool

A user directory with email sign in controls who can authenticate into the API.

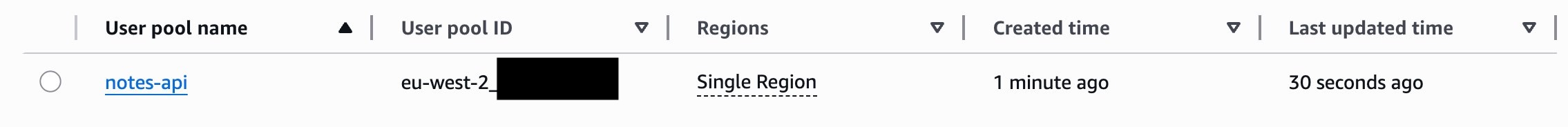

Cognito User Pool created in eu-west-2

User Pool created in eu-west-2 with email sign-in enabled

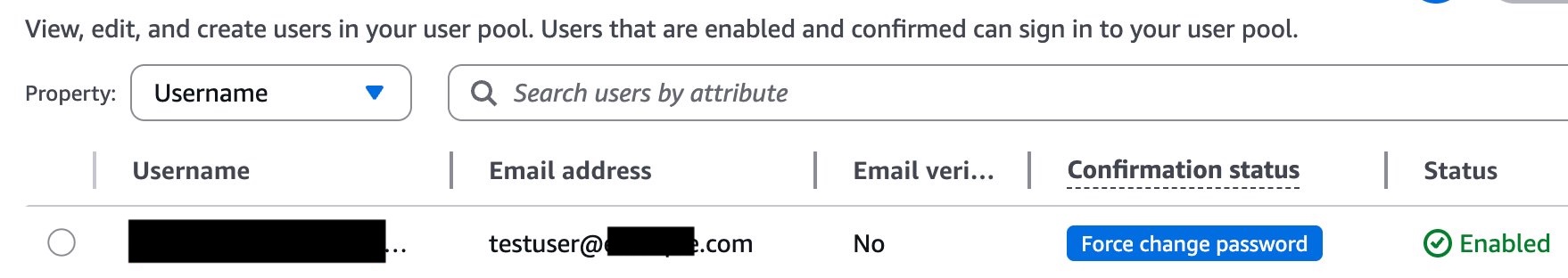

Test user created and enabled in the User Pool

Test user created, enabled, and ready for authentication

Identity Pool

Issues temporary AWS credentials to authenticated users only. Guest access is explicitly disabled, enforcing least privilege at the identity layer.

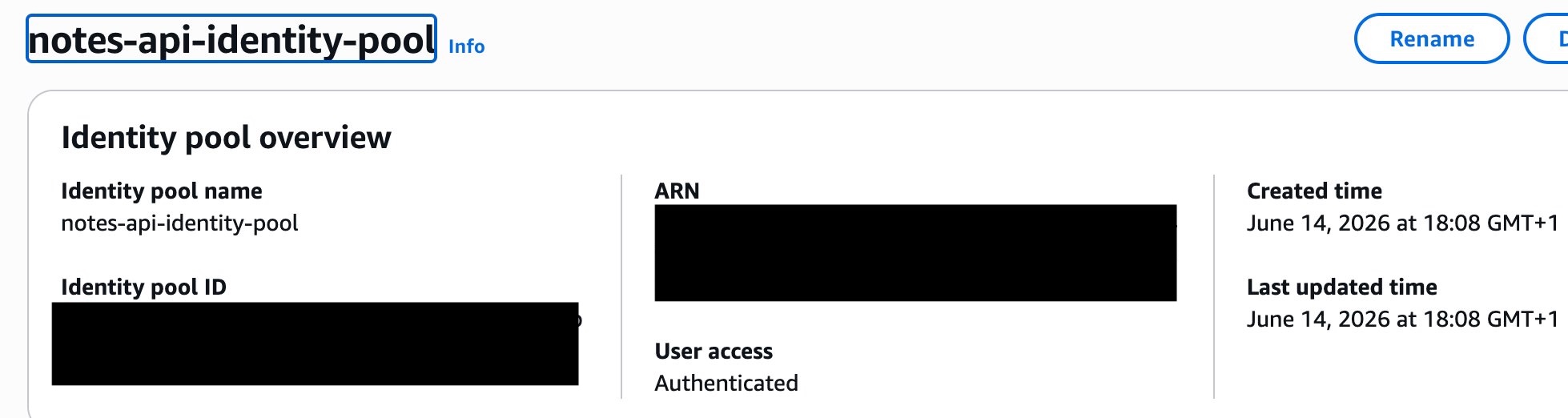

Identity Pool configured with authenticated access only

Identity Pool configured with authenticated access only — no guest credentials issued

Identity Provider Trust

The User Pool is configured as the trusted identity source. Only tokens issued by this pool are accepted.

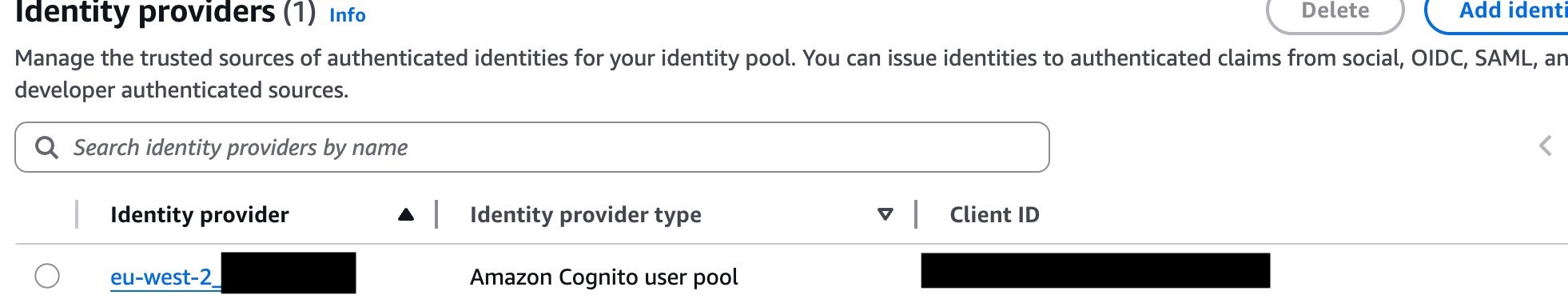

User Pool linked as trusted identity provider

User Pool linked as the sole trusted identity provider with App Client ID registered

API Gateway Authorizer

Cognito authorizer attached to all routes including GET, POST, and DELETE. Requests without a valid token are blocked before reaching any backend resource.

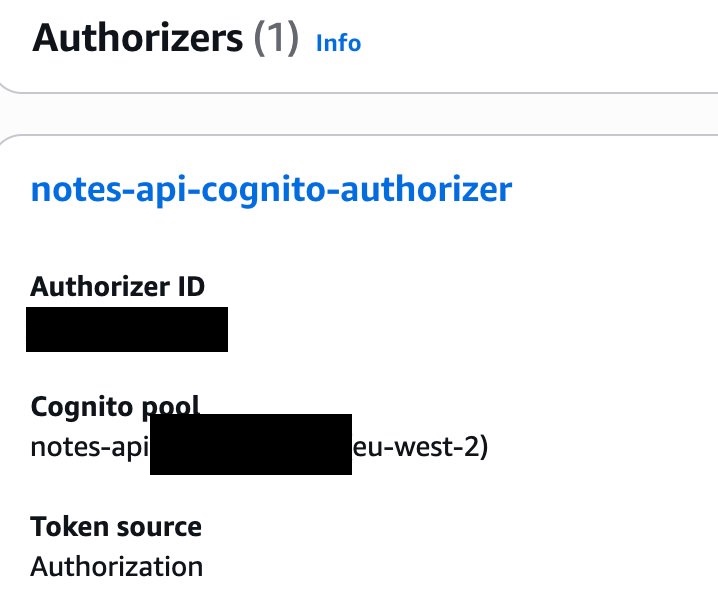

Cognito authorizer configured in API Gateway

Cognito authorizer attached to the API with token source set to the Authorization header

Production Deployment

API redeployed to the prod stage with authentication enforced across all endpoints.

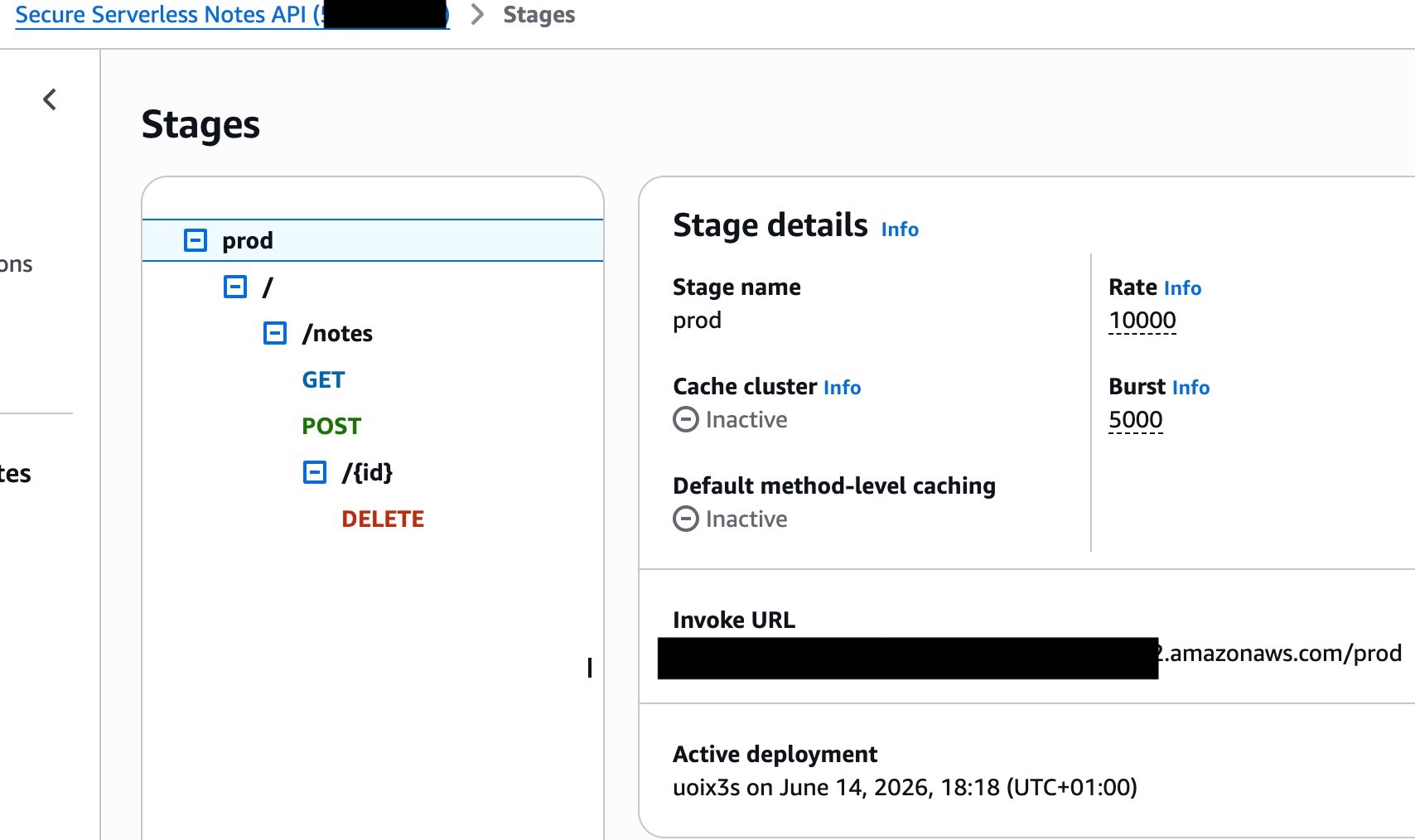

API deployed to production stage

API Gateway prod stage showing active deployment with all secured routes

Security Validation

Unauthenticated Request Blocked

No token provided. API Gateway rejects the request at the authorizer layer. Lambda and DynamoDB are never reached.

Unauthenticated request returns 401 Unauthorized

Request without a token returns 401 Unauthorized — rejected at the API Gateway layer

Authenticated Request Approved

Valid Cognito ID token passed in the Authorization header. Request succeeds and data is returned.

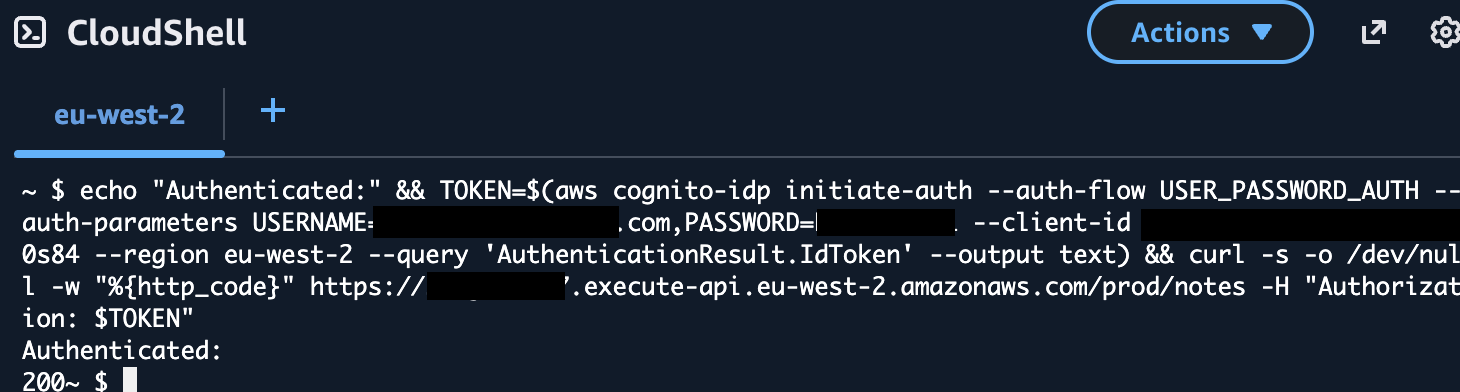

Authenticated request returns 200 success

Request with a valid Cognito ID token returns HTTP 200 confirming authentication is working

Engineering Considerations

Token expiry is 1 hour. A production implementation would use refresh tokens or a token management library
The test user email is unverified. A production setup would require email verification before sign in
Cognito hosted UI or a frontend could be added to handle sign in flows without CLI commands
CloudWatch logs would capture auth failures for monitoring and alerting

🔒 Public safe evidence only. All users and resources are lab based. No account IDs, secrets, or production data included.
